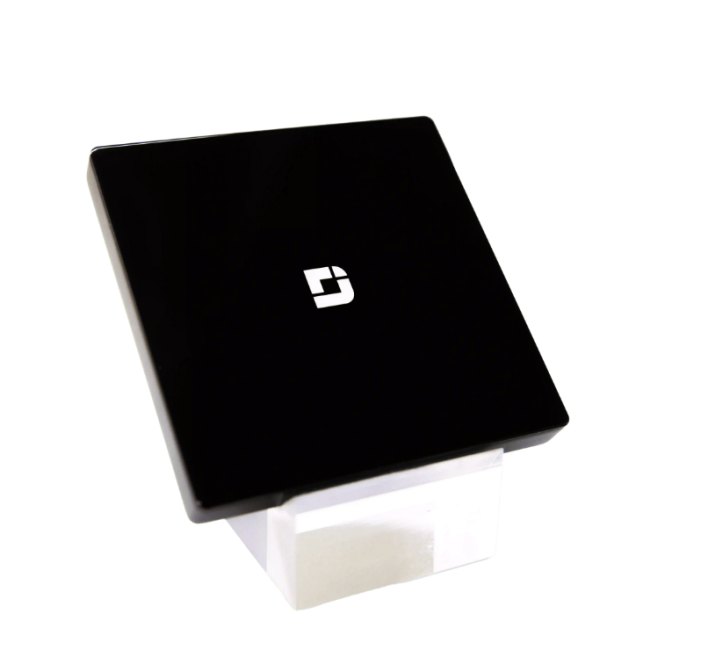

FluxID reader
Housed reader · 90 × 90 × 10 mm · 13.56 MHz
Embedded-style wall / device reader. DC 12 V, Wiegand, SM-6300 frontend. OSDP on project request.
- Chipset
- LEGIC® SM-6300 + host MCU
- Package
- Housed reader
- Host interface
- Wiegand · OSDP on request
- Frequency
- 13.56 MHz
- Read distance
- ≤ 5 cm
- Dimensions
- 90 × 90 × 10 mm
- Supply
- DC 12 V
- Operating temperature
- −20 °C to +60 °C
Supported credentials
| Media | FluxID |
|---|---|
| LEGIC® Prime (MIM256 / MIM1024) | Supported |
| LEGIC® Advant | Supported |
| ISO 14443 A | Supported |
| ISO 14443 B | Project / firmware option |
| ISO 15693 | Supported |
| MIFARE Classic | Supported |
| MIFARE DESFire EV1–EV3 | Supported |
| NFC (ISO 18092) | Project / firmware option |
Specifications
- Operating current
- ≤ 0.5 A
- Identification
- LEGIC®, MIFARE Classic, DESFire EV1–EV3, NFC (project)
- Marking
- CE, RoHS — see Compliance
- Humidity
- < 95% RH, non-condensing
