DM6300-P

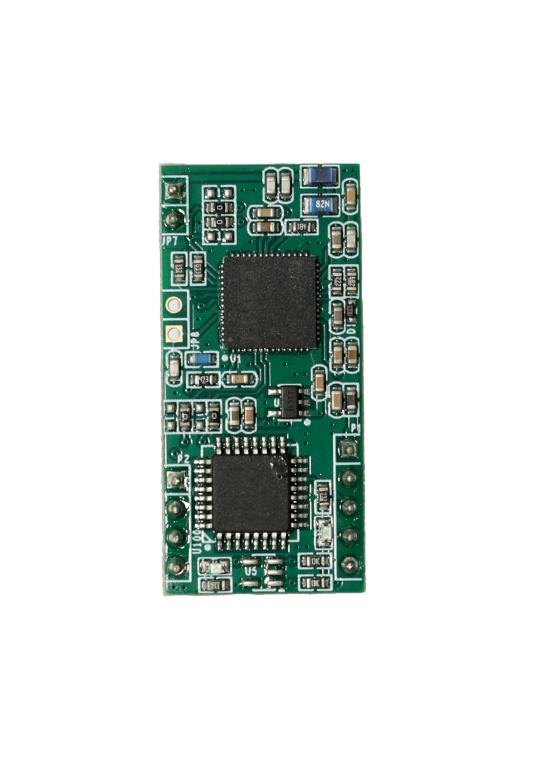

DM6300-P LEGIC® RFID module
Pin version · SM-6300
High-performance embedded module on LEGIC SM-6300. Compact pin package for OEMs who need Advant-class security and a serial host.
- Chipset
- LEGIC® SM-6300
- Package
- Pin
- Host interface
- UART (TTL)
- Frequency
- 13.56 MHz
- Read distance
- ≤ 5 cm (tag and antenna dependent)

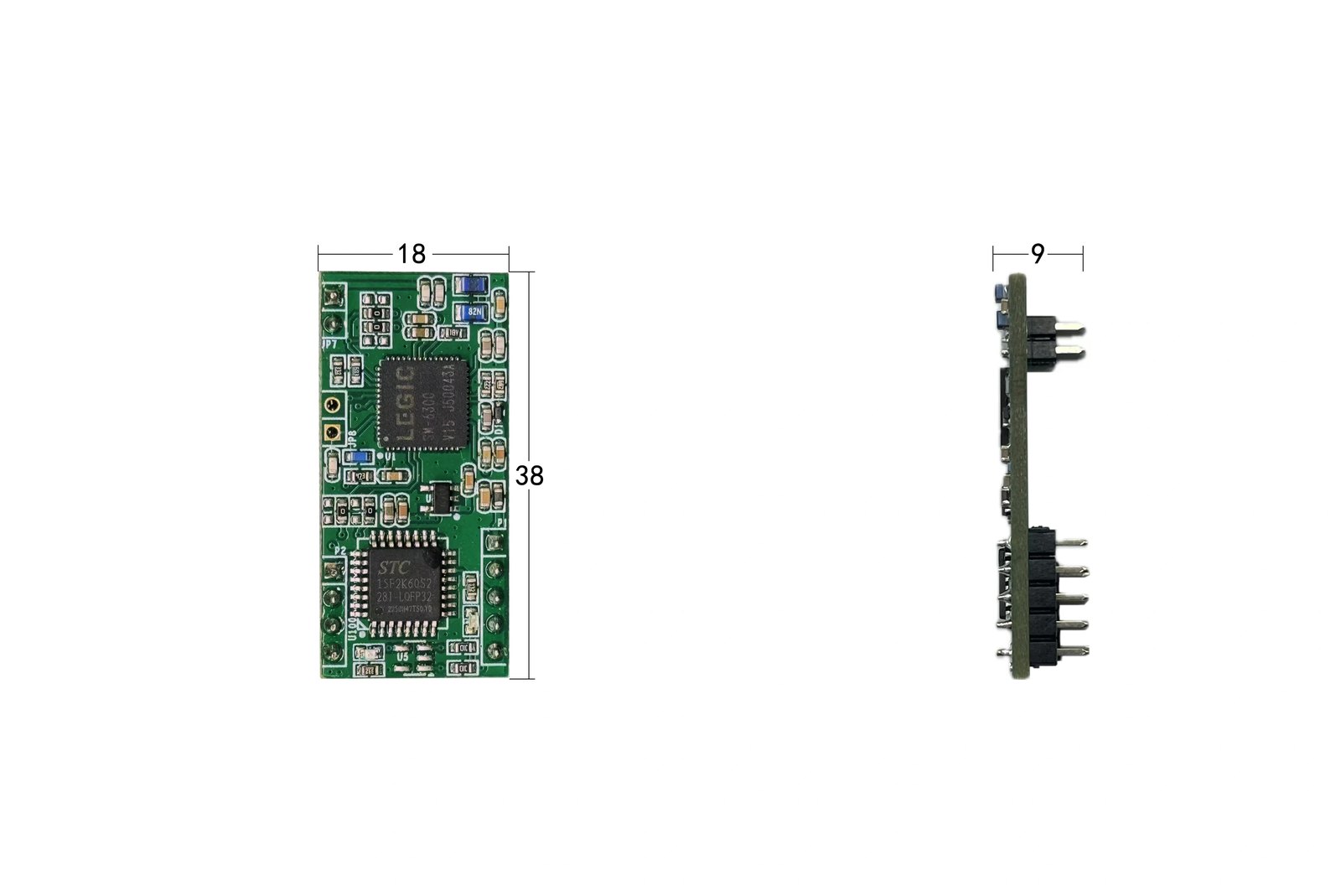

- Dimensions
- 18 × 38 × 9 mm
- Supply
- DC 5 V
- Operating temperature
- −20 °C to +70 °C
Supported credentials
| Media | DM6300-P |
|---|---|
| LEGIC® Prime (MIM256 / MIM1024) | Supported |
| LEGIC® Advant | Supported |
| ISO 14443 A | Supported |
| ISO 14443 B | Supported |
| ISO 15693 | Supported |
| MIFARE Classic | Supported |
| MIFARE DESFire EV1–EV3 | Project / firmware option |
| NFC (ISO 18092) | Project / firmware option |
Specifications
- Storage temperature
- −40 °C to +80 °C
- Communication
- Serial UART
- GPIO
- Available on host connector
- Humidity
- 10–80% RH, non-condensing
