DM6300-S
DM6300-S LEGIC® RFID module
SMD · 3.2 mm · SM-6300
Surface-mount SM-6300 module for mobile and battery devices. External antenna. UART plus GPIO on an 18-pad map.
- Chipset
- LEGIC® SM-6300
- Package
- SMD
- Host interface
- UART (TTL) + GPIO
- Frequency
- 13.56 MHz
- Read distance
- ≤ 5 cm (external antenna)

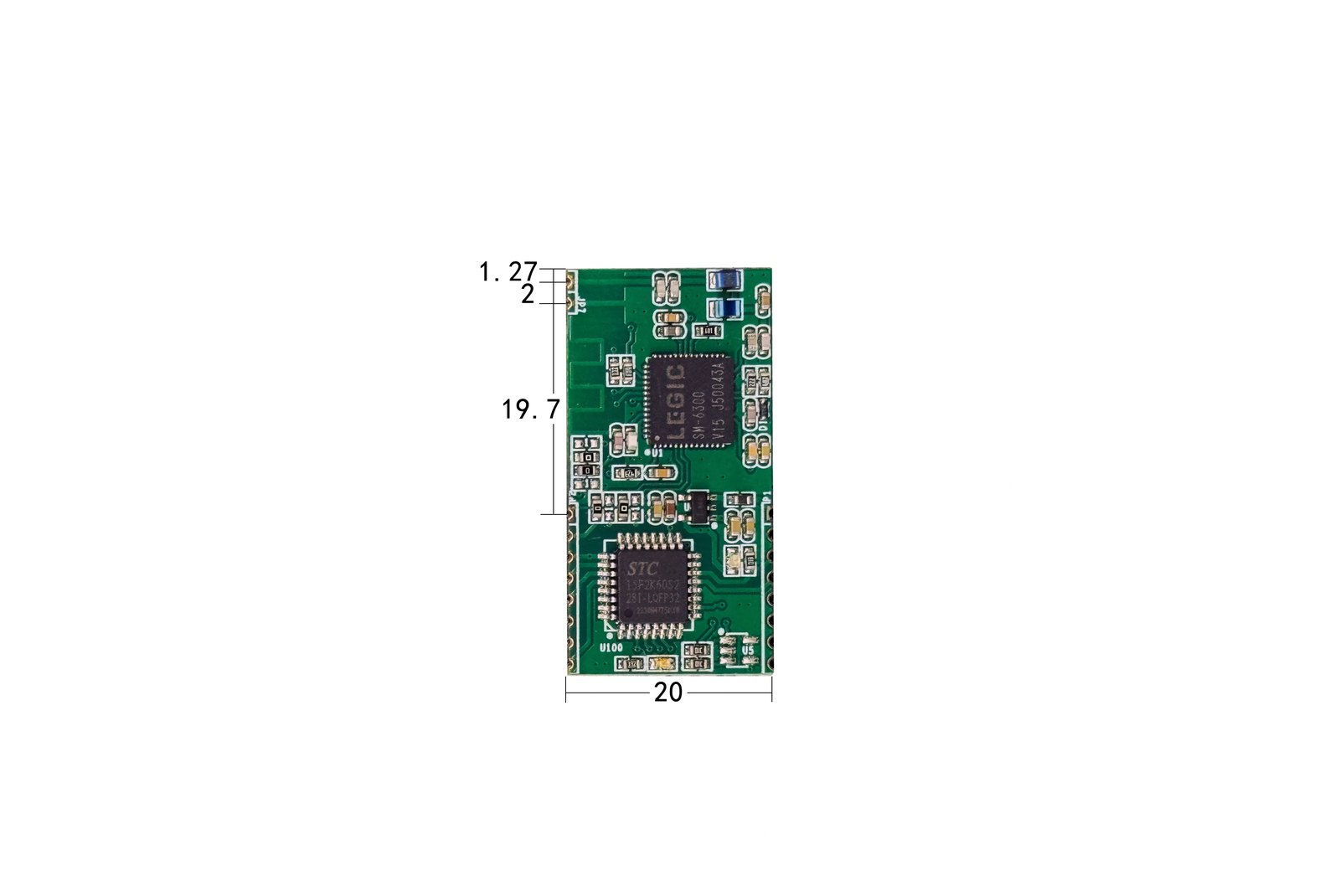

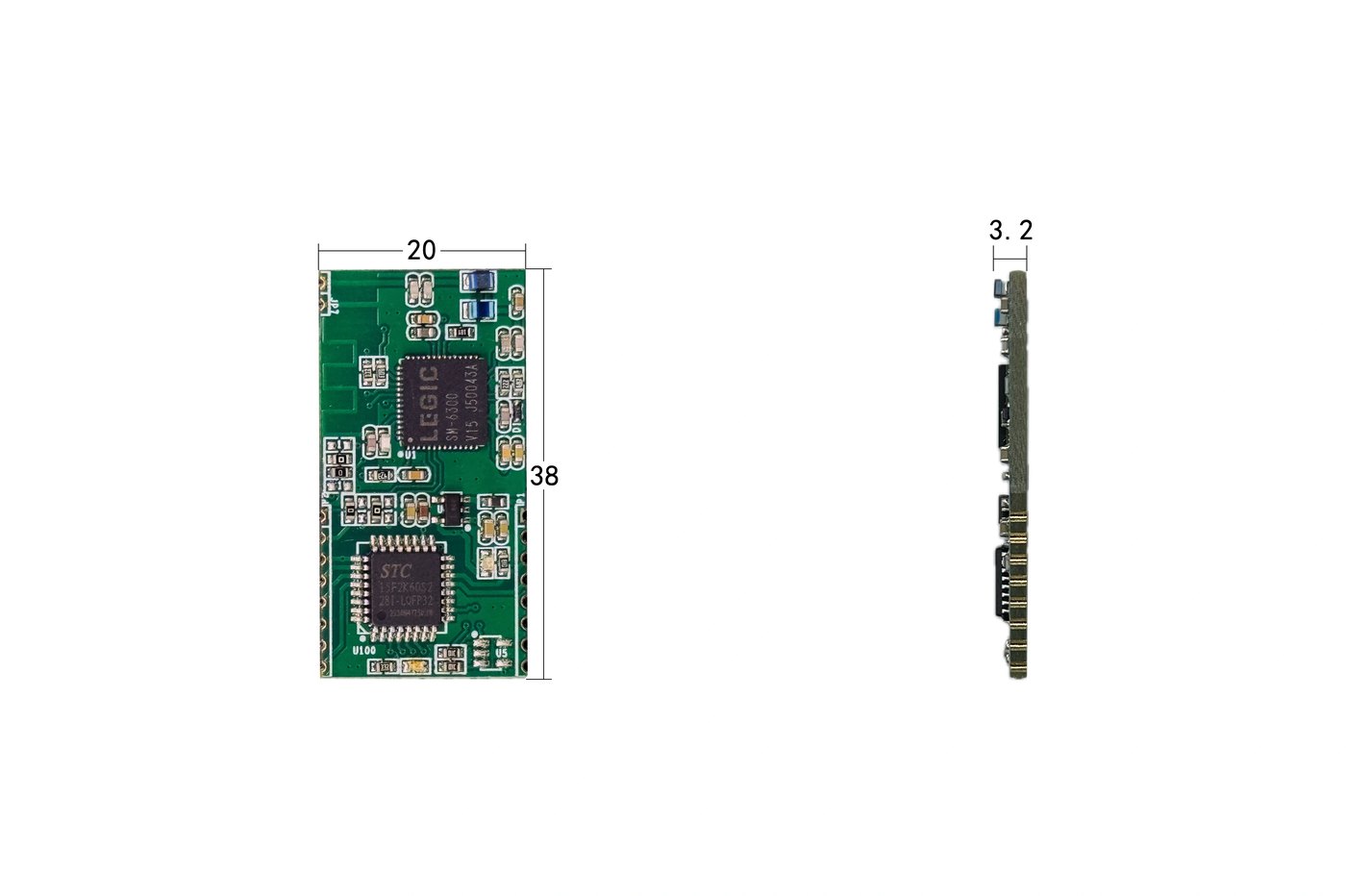

- Dimensions
- 20 × 38 × 3.2 mm
- Supply
- DC 5 V
- Operating temperature
- −20 °C to +70 °C
Supported credentials
| Media | DM6300-S |
|---|---|
| LEGIC® Prime (MIM256 / MIM1024) | Supported |
| LEGIC® Advant | Supported |
| ISO 14443 A | Supported |
| ISO 14443 B | Supported |
| ISO 15693 | Supported |
| MIFARE Classic | Supported |
| MIFARE DESFire EV1–EV3 | Project / firmware option |
| NFC (ISO 18092) | Project / firmware option |

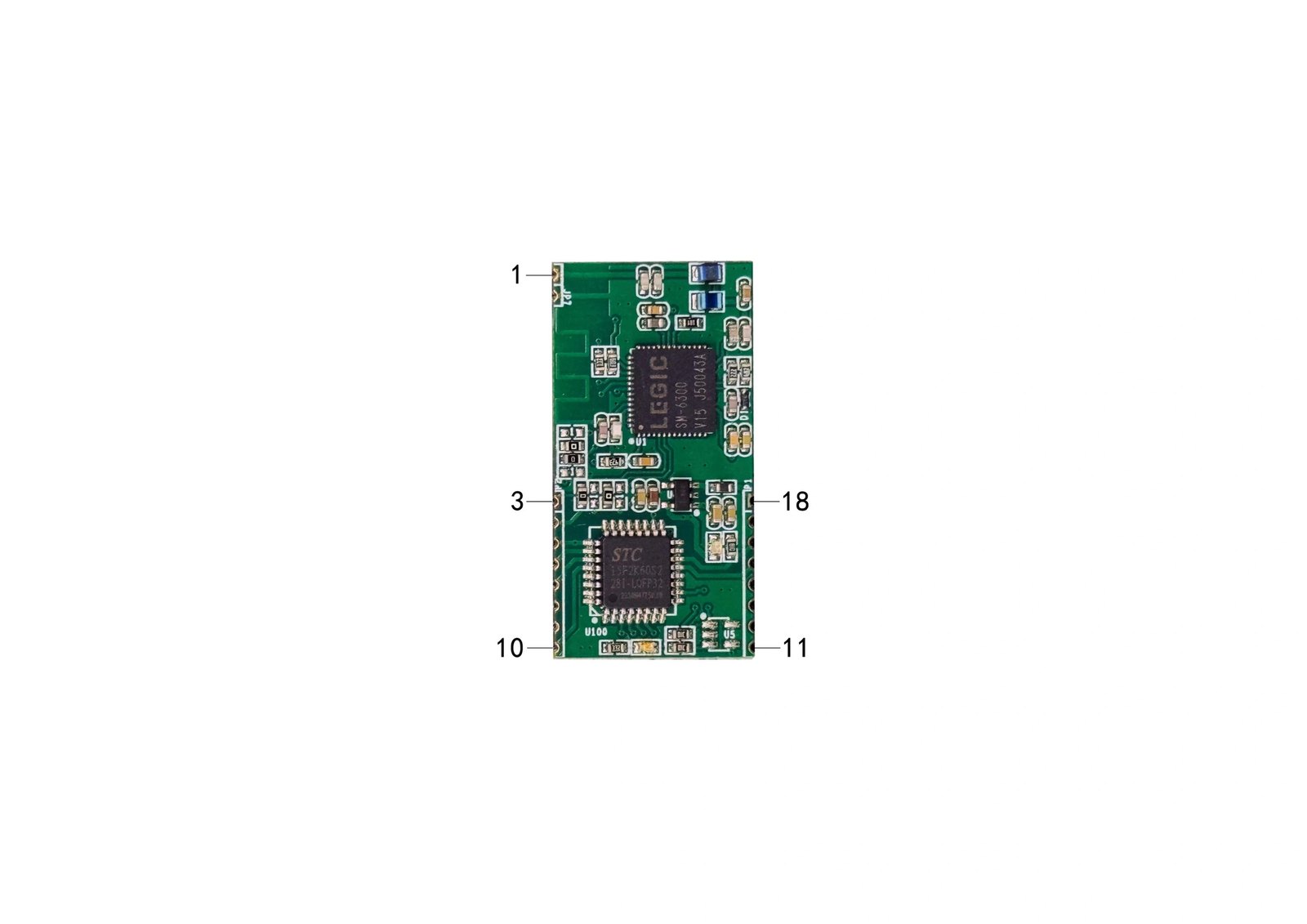

Pinout
| Pin | Name | Notes |
|---|---|---|
| 1 | ANT+ | Antenna positive |
| 2 | ANT− | Antenna negative |
| 3 | TXD | 6300 serial TX |
| 4 | RXD | 6300 serial RX |
| 5–14 | GPIO | P2.4–P1.2 |
| 15 | RXD | Host MCU RX |
| 16 | TXD | Host MCU TX |
| 17 | GND | Ground |
| 18 | 5V | Module supply |
Specifications
- Storage temperature
- −40 °C to +80 °C
- Profile
- 3.2 mm SMD — battery devices and tight housings
- Humidity
- 10–80% RH, non-condensing
