DM4200-P LEGIC® RFID module
Pin version · SM-4200
SM-4200 pin module for mature access, elevator and MFP designs that want LEGIC security without moving silicon generation mid-project.
- Chipset
- LEGIC® SM-4200
- Package
- Pin
- Host interface
- UART TTL / CMOS, 115200 8N1
- Frequency
- 13.56 MHz
- Read distance
- ≤ 5 cm
- Dimensions

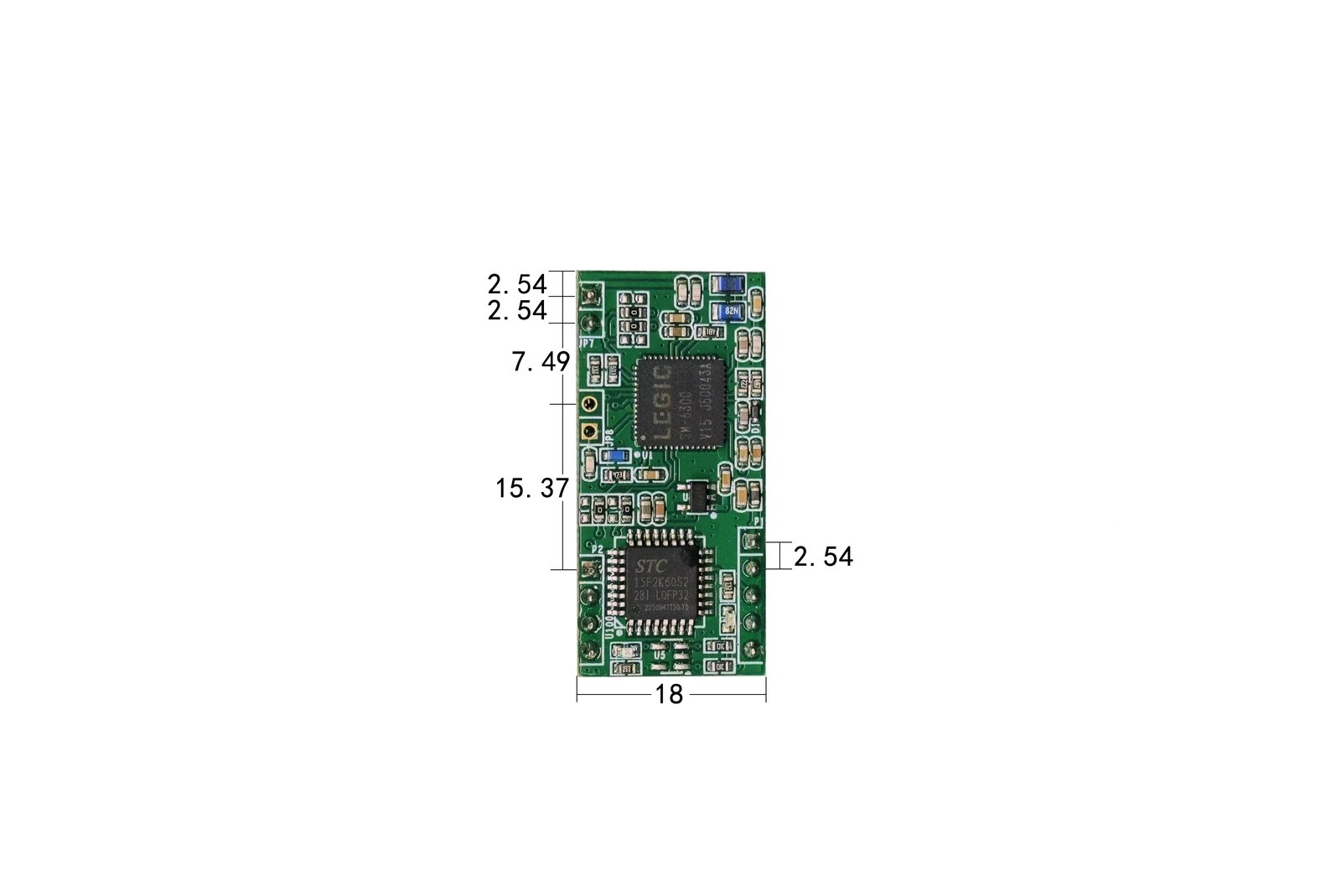

- Compact pin module (see drawing)
- Supply
- 4.5–5.5 V
- Operating temperature
- −20 °C to +70 °C
Supported credentials
| Media | DM4200-P |
|---|---|
| LEGIC® Prime (MIM256 / MIM1024) | Supported |
| LEGIC® Advant | Supported |
| ISO 14443 A | Supported |
| ISO 14443 B | Supported |
| ISO 15693 | Supported |
| MIFARE Classic | Supported |
| MIFARE DESFire EV1–EV3 | Project / firmware option |
| NFC (ISO 18092) | UID / CSN only |
Pinout
| Pin | Name | Notes |
|---|---|---|
| ANT+ | Antenna | 13.56 MHz |
| ANT− | Antenna GND | — |
| VCC | Power + | 4.5–5.5 V |
| GND | Power GND | — |
| TX | Data TX | TTL / CMOS |
| RX | Data RX | TTL / CMOS |
Specifications
- Firmware V1.0
- On card detect, outputs 4-byte hex sector data on UART
- SDK
- UART-TTL integration, OEM documentation under NDA
- Humidity
- 10–80% RH
